This page is an overview of the speaker tower / radio cabinet blue print
without measurements. Extensive R+D went into these two designs.
I'm making these blue prints available with measurements for $200.
you have a small or basic shop and skill set you can build these units.
unit that I built from 1991 to 1998 functions today if the car audio
still there. The construction methodology is superb and will not fail.
CLICK ON EITHER PRINT TO ENLARGE
What you are purchasing is a license to build these units only. You may not
sell the construction blueprint.

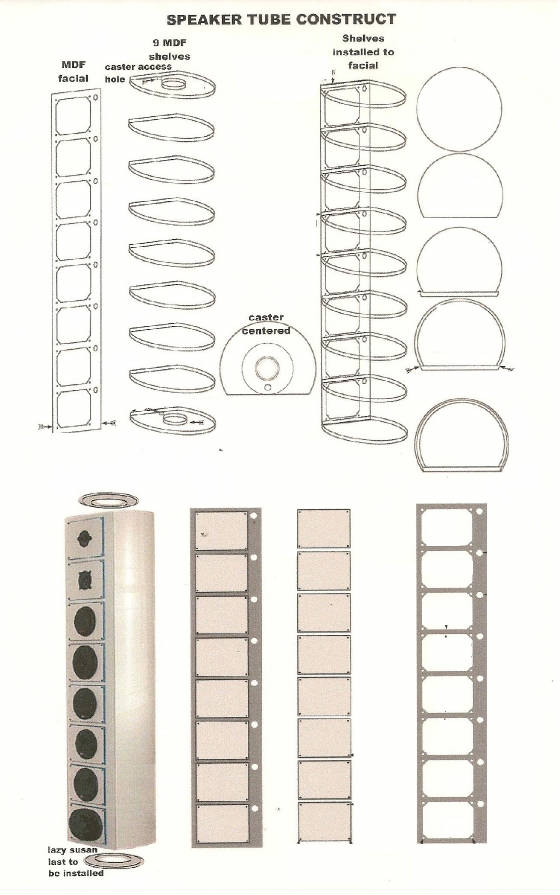

|Speaker tube construct no spec's
|click on to enlarge

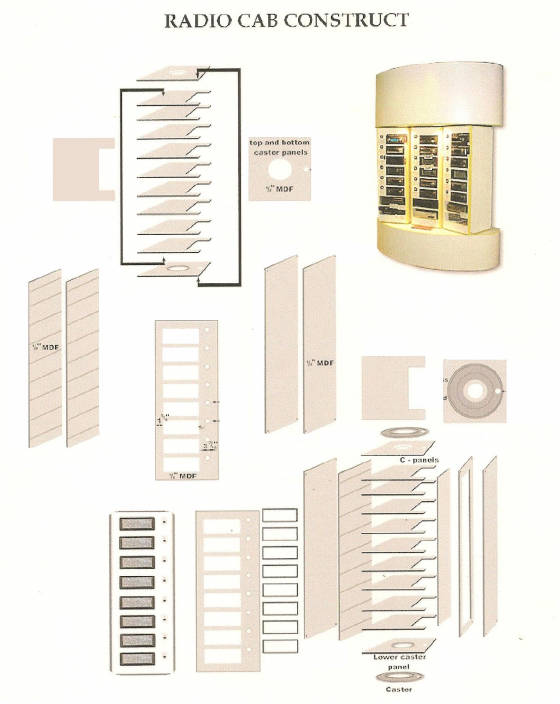

|Radio cabinet no spec's
|Click on to enlarge
Shop tools that are helpful in construct, table saw, drill press, router's.
Basic skills that are helpful, basic carpentry, laminating (Formica).
I'm available via e-mail for additional help. Use the
||I prefer Pay -Pal... Thank you Les
